Light Bracket Installation
2018+ Gen-6 Goldwing
Download PDF Version
Parts List
- • Right and Left Light Bracket
- • 4 - 5mm X 25mm SS Socket Screws
- • 4 - 5mm SS Flat Washers
- • 4 - 5mm SS Lock Washers
- • 2 - 5mm X 7mm Aluminum Spacers
- • 2 - 5mm X 12mm Aluminum Spacers
- Remove the mirror arm cover panel: Remove one 5mm setting bolt on the bottom of each panel. Pull out and rearward to snap the panels off.

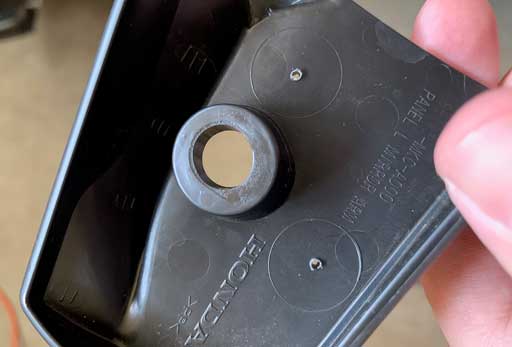

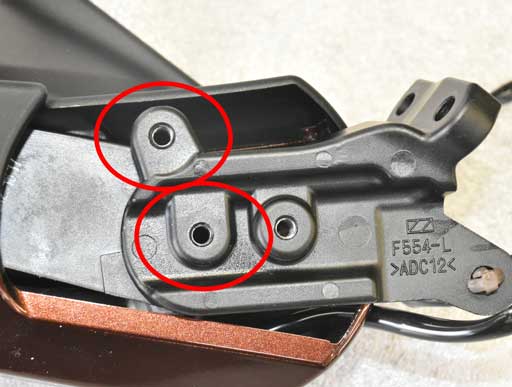

- Modify the mirror arm cover panel: Notice two unused 5mm bosses on the outer underside of the mirror arm. Drill two 5/16 to 3/8 inch corresponding holes in the mirror arm cover. Alternately, you may simply trim off the end of the panel to expose the threaded bosses.

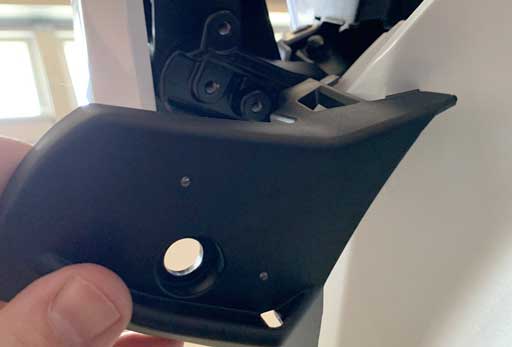

- Replace the mirror arm cover panels and check that your holes match the threaded boss locations. Adjust your holes if required.

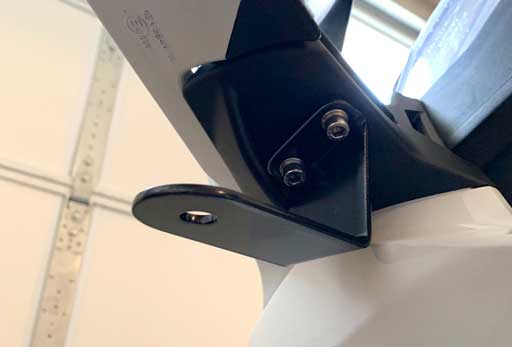

- Install our light brackets in the mirror arm bosses with the provided 5mm hardware: Pass the socket screws through the washers, light brackets, spacers and mirror arm cover. Thighten into the mirror arm bosses.
